ISM 902 928MHz RFID Card Access Control Ultrahigh Frequency Long Distance Reading
Long Range Tag Reading Distance RFID Card Access Control Wiegand 26/34 Port Integrated Uhf Rfid Gate Reader
RFID Card access control
Long range integrated UHF reader/writer, tag reading distance reached 20m, hige power 35 m
Support sp) development in multiple languages, such as VC, VB, C, etc. Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
| Model | TM-820 |
| Supported protocols | ISO18000-6B,ISO18000-6C(EPC GEN2) |
| Communication | Wiegand/USB/RS232/RS485 |
| working frequency | ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized) |
| Operation mode | Fixed Frequency or Software Programmable |
| RF power | 0~30dBm,Software Programmable |
| Reading speed | Single card average reading is 64bits, less than 6ms,
Software Programmable |
| Work mode | reading Active and reading passive, Software Programmable |
| Communication Ports | N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB |
| Input interface | 1 way trigger input |
| Reading range | >20m (High power 35m) |
| Status indicators | buzzer |
| Antenna | 10dbi circular antenna |
| Power supply | DC 9V |
| Size | 445mm×445mm×35mm |
| Weight | 2.55 Kg |
| Operation Temp. | -20ºC~+70ºC |
RFID Card access control specification:

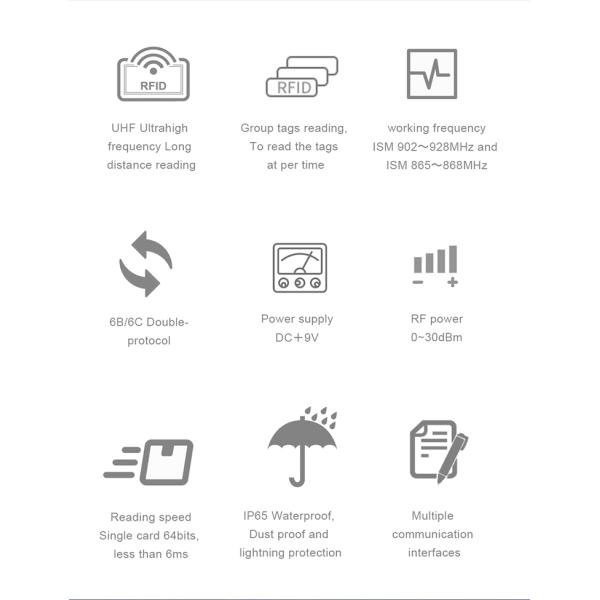

UHF Ultrahigh frequency long distance reading, group tags reading, to read the tags at per time, working frequency ISM 902-928 MHz and ISM 865-868 MHz
Support ISO18000-6B and EPC Class1 GEN2 international standards; Integrated structure design, beautiful appearance, suitable for outdoor environment.
Uhf Rfid Reader Long Range Outdoor 15m Ip67 8dbi Antenna Rs485/Rs232/Wiegand Long Range Reader Uhf Rfid Reader
Product Applications:
integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof
design. It can be widely used in various RFID systems.
It is widely used in:
Warehouse Management
Supply Chain Management
Vehicle Management
Line Management
Source Management
Asset Management
Personnel Management
Attendance Management
Product Anti-counterfeiting Management
RFID Card access control features:
An integrated UHF reader, with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems
Recognition speed is fast, and the identification of single label can reach 140 times/second
RFID card access control advantage:
High speed transmission, fast card reading, for software setting, 115200bps file transmission speed for efficient work
integrated UHF reader with multi-protocol compatibility, fast read rate, and waterproof design. It can be widely used in various RFID systems.
RFID card access control application:
Application:
Warehouse Management, Supply Chain Management,Vehicle Management,Line Management, Source Management, Asset Management. Attendance Management, Product Anti-counterfeiting Management
